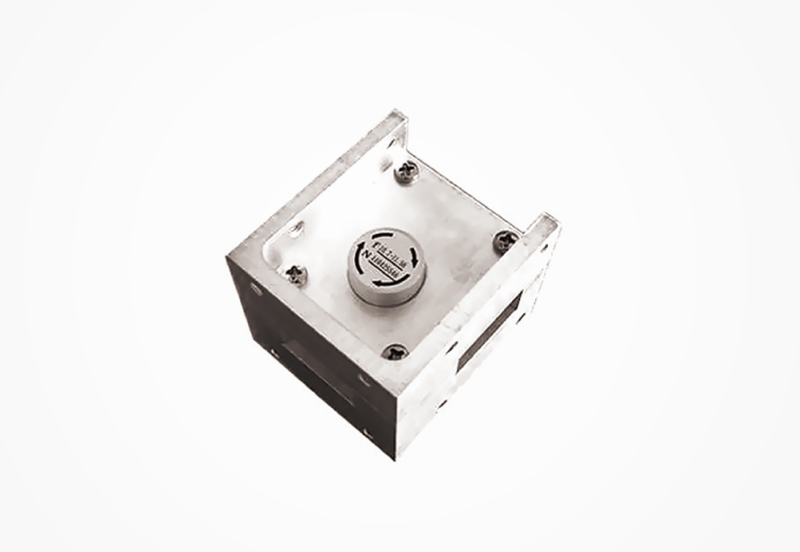

2.4GHz RF circulators are special ferrite microwave components developed for 2.4GHz ISM (Industrial, Scientific and Medical) frequency band, which are widely matched with various WiFi RF modules, wireless routing equipment, Bluetooth modules and short-distance wireless communication devices. The 2.4GHz frequency band is the most mainstream universal frequency band for civilian short-distance wireless communication, featuring wide coverage, strong penetration and good compatibility, but it also faces severe signal congestion and mutual interference caused by dense equipment deployment. The 2.4GHz dedicated RF circulator is precisely designed for the signal transmission pain points of WiFi systems, utilizing the non-reciprocal transmission characteristics of ferrite materials to realize directional control of WiFi RF signals, effectively solving the problems of signal backflow, reflection interference and mutual crosstalk between transmitting and receiving ends of WiFi modules.

In performance design, the 2.4GHz WiFi dedicated circulator focuses on balancing miniaturization, low loss and anti-interference performance to adapt to the compact design requirements of consumer wireless equipment. The device adopts ultra-thin ferrite chip structure and integrated microstrip circuit design, which can be directly embedded in WiFi module PCBs without occupying extra equipment space. Its typical working parameters include ultra-low insertion loss below 0.25dB, which will not cause obvious attenuation to WiFi signal transmission strength, and the reverse isolation degree reaches 28dB or above, which can effectively block the reflected signal generated by antenna impedance mismatch and the interference signal from adjacent WiFi channels. For dual-band and multi-antenna WiFi modules, this circulator can isolate independent signal transmission paths for different antennas, avoid signal coupling interference between multiple channels, and improve the overall anti-interference ability of wireless modules.

The application scenarios of 2.4GHz RF circulators cover almost all terminal and network equipment based on WiFi 2.4GHz band communication, including wireless routers, WiFi signal amplifiers, smart home wireless modules, industrial wireless transmission equipment and portable mobile communication terminals. In household wireless routing equipment, it optimizes signal transmission efficiency, reduces network delay and packet loss rate caused by signal interference, and improves the stability of home WiFi network connection. In industrial intelligent equipment, it ensures the stable transmission of industrial short-distance wireless data, avoids data loss and transmission errors caused by complex electromagnetic interference in industrial environments. In addition, with the continuous upgrading of WiFi technology, this circulator is compatible with WiFi4, WiFi5 and other mainstream WiFi protocols, with strong universal adaptability. Its low cost, high stability and miniaturization advantages make it a standard core accessory for high-quality WiFi RF modules, greatly improving the user experience of short-distance wireless communication.
