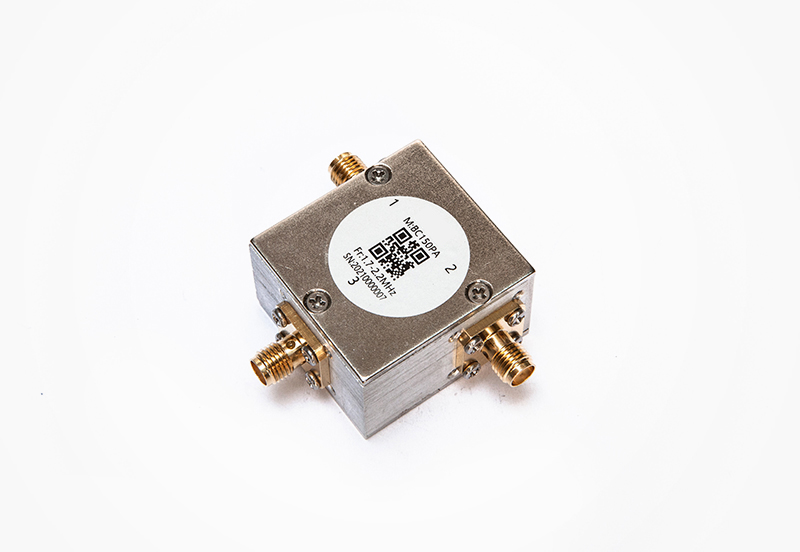

The high power 100W RF coaxial circulator is a high-performance passive microwave component engineered to handle continuous wave RF power up to 100 watts, catering to high-load communication and industrial RF system scenarios. Unlike low-power circulators designed for signal testing, this model features optimized internal magnetic circuit and ferrite core structure, effectively solving power attenuation and thermal aging issues under long-term high-power operation. Its standard coaxial interface ensures seamless compatibility with mainstream RF transmission equipment, including base station transceivers, microwave transmitters, and industrial RF heating devices. The device strictly follows industrial RF design standards, achieving stable unidirectional signal transmission and outstanding power bearing capacity without signal distortion or performance degradation under rated power load.

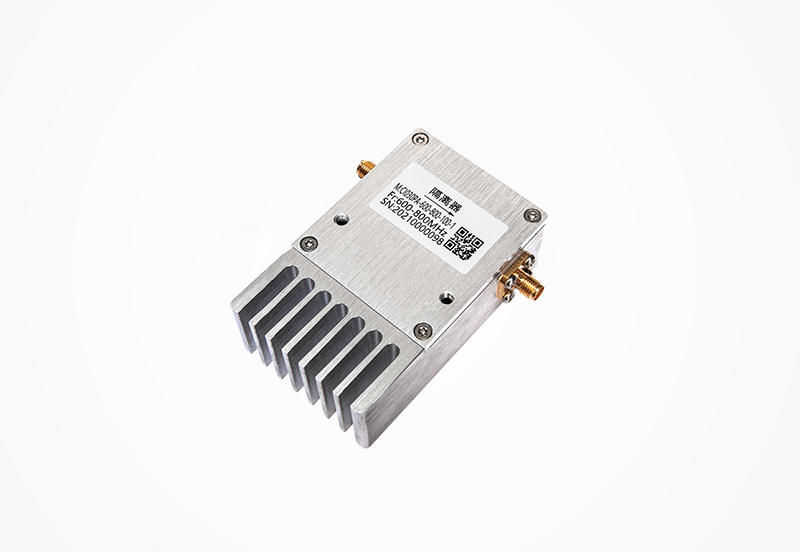

In terms of core performance parameters, this 100W high-power circulator maintains ultra-low insertion loss across the full operating frequency band, usually below 0.4dB, which minimizes signal energy loss during transmission and ensures high-efficiency RF signal delivery. It also delivers superior port isolation performance exceeding 20dB, which effectively isolates reverse reflected signals and cross-interference between transceiver channels. This critical feature protects core precision components such as power amplifiers and signal receivers from damage caused by reflected power and clutter signals. Additionally, the product adopts a high-temperature resistant metal shell and enhanced heat dissipation structure, which efficiently conducts and dissipates heat generated by high-power operation, guaranteeing long-term stable continuous working performance in high-load environments.

This high-power RF coaxial circulator boasts strong environmental adaptability and structural durability, making it suitable for complex working conditions including outdoor base station operation, industrial workshop equipment operation, and military communication systems. It features excellent vibration resistance, corrosion resistance and temperature adaptability, maintaining consistent electrical performance in wide temperature ranges. As a key component for duplex signal transmission and power protection, it is widely applied in 5G/4G communication base stations, microwave relay systems, radar transceiver equipment, and professional RF testing systems. By optimizing signal transmission direction and isolating interference signals, it significantly improves the stability, reliability and service life of the entire RF system, becoming an indispensable core accessory for high-power RF communication equipment.
