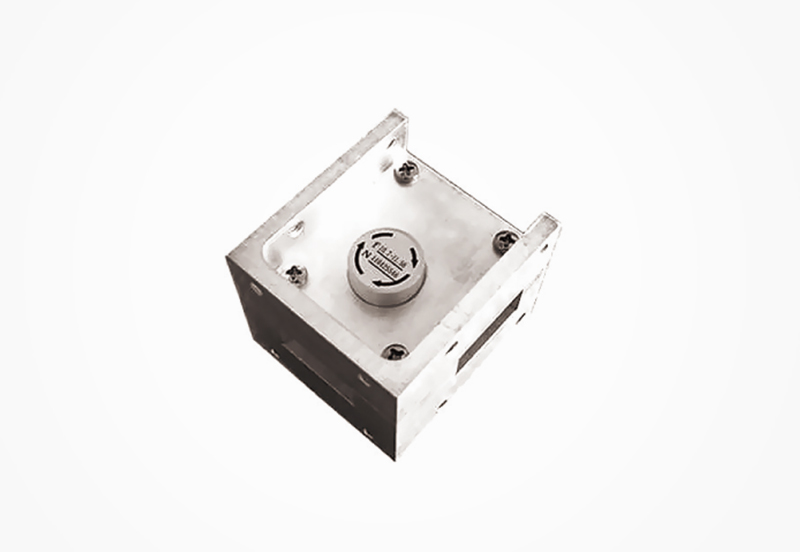

The 500W high-power RF circulator matched with RF amplifiers is a key supporting component for high-power microwave transmission systems, mainly used in high-power communication base stations, industrial microwave heating equipment, radar transmitting systems, and aerospace RF devices. In high-power RF amplifier working systems, the amplifier will generate high-energy RF signals during operation, and port mismatch, load mutation, or signal reflection will easily cause reverse power reflux, which may burn the amplifier core chip and damage the entire RF transmitting module. The 500W high-power RF circulator is designed to solve the problem of reverse power protection and directional signal transmission of high-power amplifiers. It can bear continuous 500W CW power and instantaneous peak power impact, realizing unidirectional circulation of high-power RF signals and efficient isolation of reverse reflected power.

This high-power circulator has undergone special structural and material optimization to adapt to high-power working conditions. Different from low-power circulators, it adopts high-saturation ferrite core materials and thickened metal conduction structures, which can withstand high-current and high-power signal transmission without magnetic saturation or signal distortion. The internal circuit structure is optimized for high-power impedance matching, ensuring that the insertion loss is controlled at an extremely low level during full-power operation, avoiding excessive power loss and heat accumulation. Equipped with a professional heat dissipation structure including a heat conduction substrate and external heat sink, it can quickly dissipate the massive heat generated by long-term 500W high-power operation, effectively preventing device failure caused by overheating and ensuring continuous and stable operation of the RF amplifier system.

In the matching application of RF amplifiers, the 500W high-power RF circulator plays two core roles of signal directional transmission and system protection. On the one hand, it guides the high-power RF signals output by the amplifier to the load end in a single direction, ensuring efficient and stable signal transmission and improving the working efficiency of the amplifier. On the other hand, it isolates all reverse reflected signals and mismatched power, blocks reverse power from flowing back to the amplifier, and protects the expensive amplifier core components from burnout and damage. Through professional laboratory high-power aging test, power cycle test, and impedance mismatch test, the product can maintain stable isolation and low-loss transmission performance under long-term high-load operation, becoming an indispensable safety guarantee and performance optimization component for high-power RF amplifier systems.
