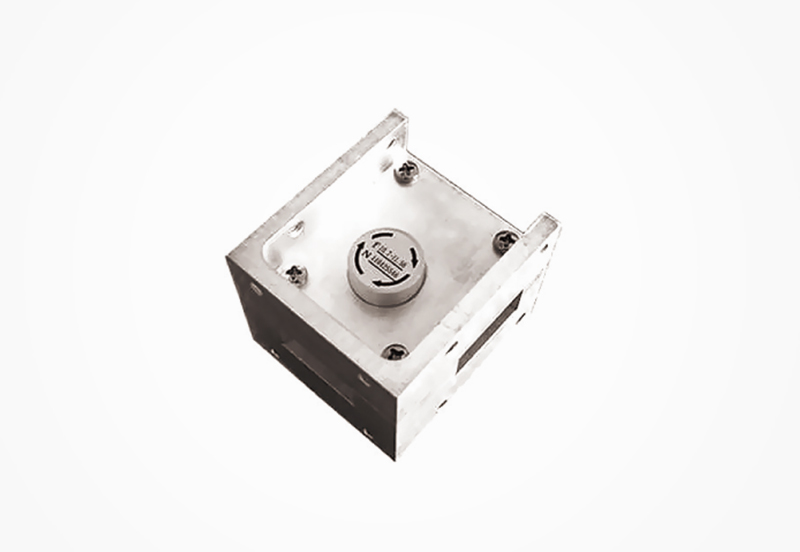

The compact 3 port RF ferrite circulator is a miniaturized passive microwave device built with high-performance ferrite magnetic materials, integrating three-port unidirectional signal transmission functions in an ultra-compact structural design. Traditional three-port circulators often feature bulky and cumbersome structures, which are difficult to adapt to miniaturized and integrated modern RF equipment. This product innovatively optimizes the internal layout of ferrite cores, magnetic rings and matching circuits, compressing the overall volume while retaining complete three-port cyclic transmission performance. Its lightweight and compact body perfectly fits the installation requirements of portable communication devices, mini satellite terminals, and integrated RF modules, effectively solving the space limitation problem of traditional circulators in precision electronic equipment.

Adopting high-purity microwave ferrite materials with excellent magnetic permeability and low loss characteristics, this three-port circulator achieves highly stable unidirectional signal transmission logic: signals entering port 1 are accurately transmitted to port 2 and isolated from port 3, signals input from port 2 are transmitted to port 3 with zero clutter interference, and signals from port 3 are stably output to port 1. This fixed cyclic transmission mode ensures zero cross-interference between transceiver channels, realizing efficient signal duplexing processing. While pursuing miniaturization, the product does not compromise electrical performance, maintaining low insertion loss and high port isolation, which fully meets the high-precision signal processing requirements of civilian and commercial RF systems.

The structural design of this compact ferrite circulator focuses on installation convenience and integration compatibility. It supports standard surface mounting and coaxial connector installation methods, which can be flexibly embedded in various compact RF systems and circuit modules. The all-metal sealed shell not only enhances structural stability but also provides good electromagnetic shielding performance, effectively resisting external electromagnetic signal interference and ensuring pure internal signal transmission. It is widely used in compact communication terminals, indoor signal coverage equipment, mini satellite receivers, wireless sensor systems and portable RF testing instruments. Its miniaturized size, stable performance and cost-effective advantages make it the preferred component for modern miniaturized RF communication system integration and upgrading.
