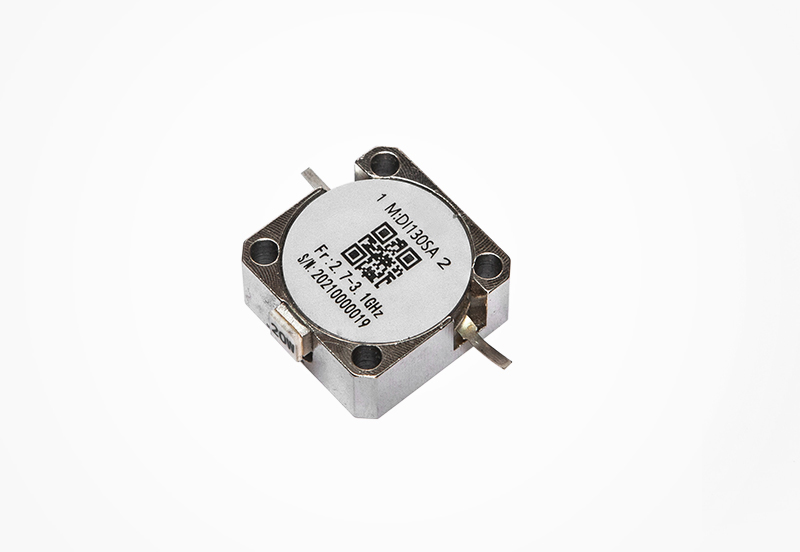

The portable signal generator matched RF isolator is a professional supporting RF component specially developed for portable signal test equipment, perfectly adapting to the working characteristics and usage scenarios of handheld and portable signal generators. As a core matching component of signal generators, it solves the key problems of signal reflection, standing wave fluctuation, and test data deviation caused by impedance mismatch during signal transmission and testing. Ordinary RF isolators are mostly designed for fixed equipment and cannot adapt to the frequent movement, intermittent operation, and diverse test environment switching of portable signal generators, while this matched isolator is optimized in structure, performance, and volume for portable test scenarios, ensuring high-precision and stable output of test signals in mobile working states.

This matched RF isolator features ultra-low forward insertion loss and high reverse isolation, which can effectively suppress reverse reflected signals generated by load mismatch during signal generator operation. In field test scenarios such as on-site communication network debugging, equipment fault detection, and RF parameter calibration, signal generators often connect with various uncertain load devices, which is prone to signal reflection and causes signal source power attenuation and waveform distortion. The supporting isolator can completely isolate reverse interference signals, maintain stable output power and intact signal waveform of the portable signal generator, and ensure the accuracy and repeatability of test data. Meanwhile, it adopts a lightweight and compact integrated design, with a small overall volume and light weight, which does not increase the load of the portable signal generator and meets the portable and mobile working needs of field test personnel.

In terms of structural and environmental adaptability, the portable signal generator matched RF isolator has excellent shock resistance, vibration resistance, and temperature adaptability. It adopts a reinforced shell structure and internal fixed design to cope with frequent handling and collision during field tests, avoiding internal component displacement and performance failure. It can work stably in a wide temperature range, adapting to complex outdoor environments such as high temperature, low temperature, and humidity. In addition, the product adopts universal high-precision interface matching, which is compatible with most mainstream portable signal generator models on the market, realizing plug-and-play quick matching. It is widely used in communication engineering field debugging, laboratory portable testing, equipment maintenance and calibration, and mobile RF parameter detection, becoming an essential core accessory to ensure the reliable operation of portable signal generators.
