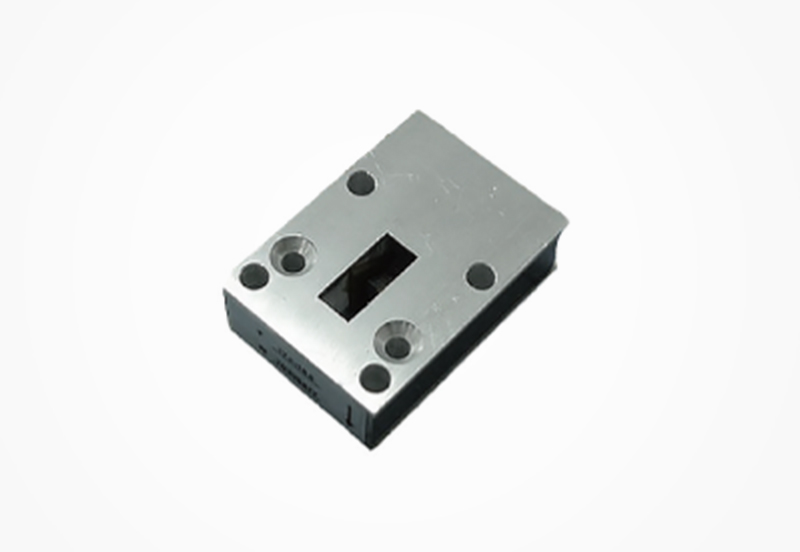

The portable signal generator matched RF isolator is a miniaturized, lightweight RF accessory specially developed for signal testing and measurement scenarios, perfectly compatible with various portable signal generator devices. Breaking the bulky structural design of traditional industrial isolators, this product adopts a compact miniaturized layout and high-density component integration technology, featuring small size, light weight, and easy carrying. It retains the core non-reciprocal transmission function of RF isolators, ensuring low-loss forward signal output and efficient reverse signal isolation, fully meeting the precision matching requirements of portable signal generators .

In RF signal testing, experimental debugging, and equipment calibration work, the signal generator is prone to signal reflection and impedance mismatch due to frequent connection and disconnection of test lines and switching of test loads. Unisolated reverse reflected signals will interfere with the signal generator’s internal oscillator, resulting in unstable output signal frequency and power, and even cause damage to the precision signal generator core. This matched isolator is connected in series at the output end of the signal generator, which can completely isolate reverse reflected signals, stabilize output signal amplitude and frequency, and greatly improve the accuracy and repeatability of test data .

The product adopts a universal RF interface design, compatible with mainstream portable signal generators on the market, with simple plug-and-play operation and no complicated installation and debugging. It has excellent broadband matching performance, adapting to multi-band signal output testing. With low power consumption and high stability, it is suitable for laboratory testing, field mobile debugging, engineering site detection, and other scenarios. It is an essential supporting device for improving the precision and safety of portable signal generator testing work .
