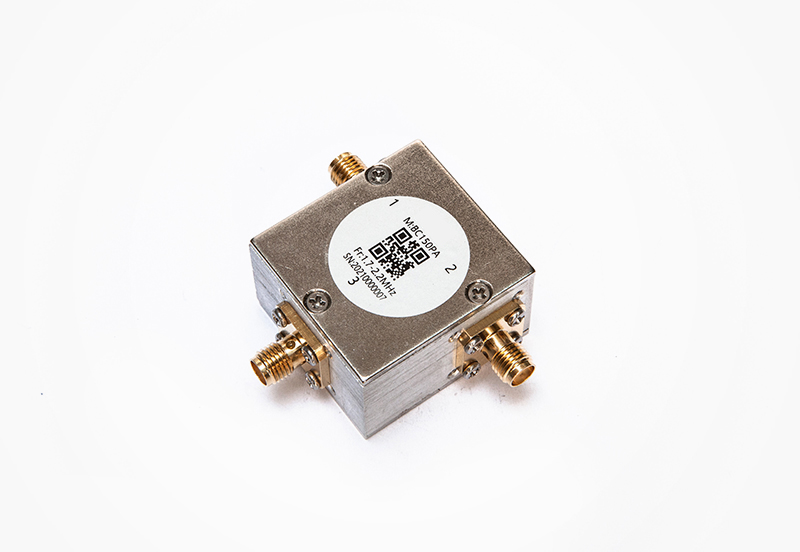

The portable test RF circulator is a dedicated supporting accessory for RF signal sources, specially designed for field RF testing, mobile equipment debugging, and outdoor communication system maintenance. Traditional fixed industrial circulators are large in size, heavy in weight, and inconvenient to carry, which cannot meet the flexible testing requirements of on-site signal source calibration, RF circuit debugging, and mobile device performance verification. As a lightweight and miniaturized functional accessory, the portable test RF circulator perfectly matches the working characteristics of portable RF signal sources, featuring small size, light weight, plug-and-play, and stable performance, effectively solving the problems of signal confusion, poor test accuracy, and inconvenient operation in field RF testing.

In terms of functional design, the portable test RF circulator retains the core non-reciprocal transmission characteristics of standard circulators, realizing unidirectional signal transmission and multi-port isolation. When matched with an RF signal source, it can effectively isolate the interference signal generated by the tested device, prevent the reflected signal from affecting the output stability of the signal source, and avoid test data deviation caused by signal source load mutation. The product adopts a miniaturized integrated circuit design and high-precision low-loss components, ensuring that the core electrical indicators such as insertion loss and isolation meet the test standards of laboratory-grade equipment while realizing miniaturization. The standard SMA interface is adopted for fast plugging and unplugging, which is compatible with most mainstream portable RF signal sources, spectrum analyzers, and field test instruments on the market, with strong versatility.

The portable test RF circulator, as a professional signal source accessory, has excellent field environmental adaptability and test stability. It adopts a high-strength engineering plastic and lightweight metal composite shell, which is anti-drop, anti-vibration, and anti-interference, adapting to complex field test environments such as outdoor high and low temperature, vibration, and electromagnetic clutter. It does not need external power supply and complex calibration steps during use, realizing instant connection and instant testing, greatly improving the efficiency of field RF equipment debugging, signal source calibration, and communication line testing. It is widely used in communication engineering maintenance, outdoor radar equipment debugging, teaching laboratory mobile testing, and industrial RF equipment field detection, providing accurate and convenient signal isolation and directional transmission guarantee for portable RF test systems.
